#include <widget.hpp>

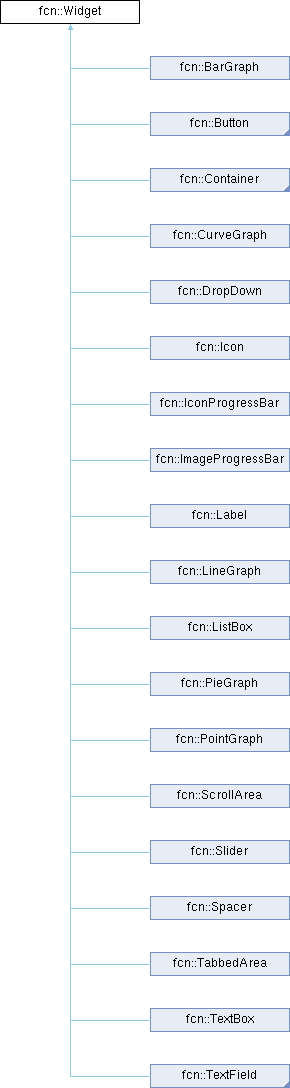

Inheritance diagram for fcn::Widget:

Public Types
enum class	SelectionMode : uint8_t { None = 0 , Border = 1 , Background = 2 }

Public Member Functions
virtual void	_draw (Graphics *graphics)
virtual FocusHandler *	_getFocusHandler ()
virtual std::list< FocusListener * > const &	_getFocusListeners ()
virtual FocusHandler *	_getInternalFocusHandler ()
virtual std::list< KeyListener * > const &	_getKeyListeners ()
virtual std::list< MouseListener * > const &	_getMouseListeners ()
virtual void	_logic ()
virtual void	_setFocusHandler (FocusHandler *focusHandler)
virtual void	_setParent (Widget *parent)
void	adaptLayout ()
virtual void	adaptLayout (bool top)
void	addActionListener (ActionListener *actionListener)
void	addDeathListener (DeathListener *deathListener)
void	addFocusListener (FocusListener *focusListener)
void	addKeyListener (KeyListener *keyListener)
void	addMouseListener (MouseListener *mouseListener)
void	addWidgetListener (WidgetListener *widgetListener)
virtual void	adjustSize ()
virtual void	draw (Graphics *graphics)=0
virtual void	drawBorder (Graphics *graphics)
virtual void	drawOutline (Graphics *graphics)
virtual void	drawSelectionFrame (Graphics *graphics)
void	expandContent ()
virtual void	expandContent (bool recursion)
virtual void	focusNext ()
virtual void	focusPrevious ()
virtual void	fontChanged ()
virtual void	getAbsolutePosition (int &x, int &y) const
std::string const &	getActionEventId () const
Color const &	getBackgroundColor () const
Color const &	getBaseColor () const
Color const &	getBorderColor () const
unsigned int	getBorderSize () const
virtual Rectangle	getChildrenArea ()
unsigned int	getChildrenCount () const
Rectangle const &	getDimension () const
Size const &	getFixedSize () const
Font *	getFont () const
Color const &	getForegroundColor () const
int	getHeight () const
std::string const &	getId () const
void	getLastPosition (int &x, int &y) const
int	getMarginBottom () const
int	getMarginLeft () const
int	getMarginRight () const
int	getMarginTop () const
Size const &	getMaxSize () const
Size const &	getMinSize () const
Color const &	getOutlineColor () const
unsigned int	getOutlineSize () const
unsigned int	getPaddingBottom () const
unsigned int	getPaddingLeft () const
unsigned int	getPaddingRight () const
unsigned int	getPaddingTop () const
virtual Widget *	getParent () const
Color const &	getSelectionColor () const
SelectionMode	getSelectionMode () const
virtual Widget *	getTop () const
unsigned int	getVisibleChildrenCount () const
Widget *	getWidgetAt (int x, int y)
virtual Widget *	getWidgetAt (int x, int y, Widget *exclude)
std::list< Widget * >	getWidgetsIn (Rectangle const &area)
virtual std::list< Widget * >	getWidgetsIn (Rectangle const &area, Widget *ignore)
int	getWidth () const
int	getX () const
int	getY () const
bool	isEnabled () const
bool	isFixedSize () const
bool	isFocusable () const
virtual bool	isFocused () const
bool	isHorizontalExpand () const
bool	isLastPositionSet () const
virtual bool	isLayouted ()
virtual bool	isModalFocusable () const
virtual bool	isModalFocused () const
virtual bool	isModalMouseInputFocusable () const
virtual bool	isModalMouseInputFocused () const
bool	isSetVisible () const
bool	isTabInEnabled () const
bool	isTabOutEnabled () const
bool	isVerticalExpand () const
bool	isVisible () const
virtual void	logic ()
virtual void	moveToBottom (Widget *widget)
virtual void	moveToTop (Widget *widget)
Widget &	operator= (Widget &&)=delete
Widget &	operator= (Widget const &)=delete
virtual void	releaseModalFocus ()
virtual void	releaseModalMouseInputFocus ()
void	removeActionListener (ActionListener *actionListener)
void	removeDeathListener (DeathListener *deathListener)
void	removeFocusListener (FocusListener *focusListener)
void	removeKeyListener (KeyListener *keyListener)
void	removeMouseListener (MouseListener *mouseListener)
void	removeWidgetListener (WidgetListener *widgetListener)
virtual void	requestFocus ()
virtual void	requestModalFocus ()
virtual void	requestModalMouseInputFocus ()
virtual void	requestMoveToBottom ()
virtual void	requestMoveToTop ()
void	resizeToContent ()
virtual void	resizeToContent (bool recursion)
void	setActionEventId (std::string const &actionEventId)
virtual void	setBackgroundColor (Color const &color)
virtual void	setBaseColor (Color const &color)
virtual void	setBorderColor (Color const &color)
void	setBorderSize (unsigned int size)
void	setDimension (Rectangle const &dimension)
void	setEnabled (bool enabled)
void	setFixedSize (Size const &size)
void	setFocusable (bool focusable)
virtual void	setFont (Font *font)
virtual void	setForegroundColor (Color const &color)
void	setHeight (int height)
void	setHorizontalExpand (bool expand)
void	setId (std::string const &id)
void	setInternalFocusHandler (FocusHandler *internalFocusHandler)
void	setLastPosition (int x, int y)
void	setMargin (int margin)
void	setMarginBottom (int margin)
void	setMarginLeft (int margin)
void	setMarginRight (int margin)
void	setMarginTop (int margin)
void	setMaxSize (Size const &size)
void	setMinSize (Size const &size)
virtual void	setOutlineColor (Color const &color)
void	setOutlineSize (unsigned int size)
void	setPadding (unsigned int padding)
void	setPaddingBottom (unsigned int padding)
void	setPaddingLeft (unsigned int padding)
void	setPaddingRight (unsigned int padding)
void	setPaddingTop (unsigned int padding)
void	setPosition (int x, int y)
virtual void	setSelectionColor (Color const &color)
virtual void	setSelectionMode (SelectionMode mode)
void	setSize (int width, int height)
void	setTabInEnabled (bool enabled)
void	setTabOutEnabled (bool enabled)
void	setVerticalExpand (bool expand)
void	setVisible (bool visible)
void	setWidth (int width)
void	setX (int x)
void	setY (int y)
virtual void	showPart (Rectangle rectangle)
virtual void	showWidgetPart (Widget *widget, Rectangle area)
	Widget ()
	Widget (Widget &&)=delete
	Widget (Widget const &)=delete

Static Public Member Functions
static DeathListener *	_getGuiDeathListener ()
static VisibilityEventHandler *	_getVisibilityEventHandler ()
static void	_setGuiDeathListener (DeathListener *deathListener)
static void	_setVisibilityEventHandler (VisibilityEventHandler *visibilityEventHandler)
static void	setGlobalFont (Font *font)
static bool	widgetExists (Widget const *widget)

Protected Member Functions
void	add (Widget *widget)
void	calculateSize ()
void	distributeActionEvent ()
void	distributeAncestorHiddenEvent (Widget *ancestor)
void	distributeAncestorMovedEvent (Widget *ancestor)
void	distributeAncestorShownEvent (Widget *ancestor)
void	distributeHiddenEvent ()
void	distributeMovedEvent ()
void	distributeResizedEvent ()
void	distributeShownEvent ()
virtual Widget *	findWidgetById (std::string const &id)
std::list< Widget * > const &	getChildren () const
virtual void	remove (Widget *widget)
virtual void	removeAllChildren ()
void	resizeToChildren ()

Protected Attributes
std::string	mActionEventId
std::list< ActionListener * >	mActionListeners
Color	mBackgroundColor {0xf9fafb}
Color	mBaseColor {0xe5e7eb}
Color	mBorderColor {0xd1d5db}
unsigned int	mBorderSize {0}
std::list< Widget * >	mChildren
Font *	mCurrentFont {nullptr}
std::list< DeathListener * >	mDeathListeners
Rectangle	mDimension
bool	mEnabled {true}
Size	mFixedSize {-1, -1}
bool	mFixedSizeUsed {false}
bool	mFocusable {false}
FocusHandler *	mFocusHandler {nullptr}
std::list< FocusListener * >	mFocusListeners
Color	mForegroundColor {0x1f2933}
bool	mHExpand {false}
std::string	mId
FocusHandler *	mInternalFocusHandler {nullptr}
std::list< KeyListener * >	mKeyListeners
int	mLastX {0}
int	mLastY {0}
int	mMarginBottom {0}
int	mMarginLeft {0}
int	mMarginRight {0}
int	mMarginTop {0}
Size	mMaxSize {std::numeric_limits<int>::max(), std::numeric_limits<int>::max()}
Size	mMinSize {0, 0}
std::list< MouseListener * >	mMouseListeners
Rectangle	mOffsetRect
Color	mOutlineColor {0x9ca3af}
unsigned int	mOutlineSize {0}
unsigned int	mPaddingBottom {0}
unsigned int	mPaddingLeft {0}
unsigned int	mPaddingRight {0}
unsigned int	mPaddingTop {0}
Widget *	mParent {nullptr}
Color	mSelectionColor {0x3b82f6}
SelectionMode	mSelectionMode {SelectionMode::None}
bool	mTabIn {true}
bool	mTabOut {true}
bool	mVExpand {false}
bool	mVisible {true}
std::list< WidgetListener * >	mWidgetListeners

Static Protected Attributes
static DefaultFont	mDefaultFont
static Font *	mGlobalFont = nullptr
static DeathListener *	mGuiDeathListener = nullptr
static VisibilityEventHandler *	mVisibilityEventHandler = nullptr
static std::list< Widget * >	mWidgetInstances

Detailed Description

Abstract base class defining the common behavior, properties, and lifecycle of all GUI elements.

It contains basic functions every widget should have.

NOTE: Functions beginning with underscore "_" should not be overloaded unless you know what you are doing.

Definition at line 44 of file widget.hpp.

Member Enumeration Documentation

◆ SelectionMode

enum class fcn::Widget::SelectionMode : uint8_t

strong

Selection mode.

Definition at line 50 of file widget.hpp.

Constructor & Destructor Documentation

◆ Widget()

fcn::Widget::Widget ( )

Constructor.

Resets member variables. Notably, a widget is not focusable as default, therefore, widgets that are supposed to be focusable should override this default in their own constructor.

Definition at line 36 of file widget.cpp.

References mWidgetInstances.

◆ ~Widget()

fcn::Widget::~Widget ( )

virtual

Definition at line 41 of file widget.cpp.

Member Function Documentation

◆ _draw()

void fcn::Widget::_draw ( Graphics * graphics )

virtual

Called whenever a widget should draw itself.

The function will set up clip areas and call the draw function for this widget and for all its children.

WARNING: This function is used internally and should not be called or overloaded unless you know what you are doing.

Definition at line 1372 of file widget.cpp.

References draw(), drawOutline(), getChildrenArea(), fcn::Rectangle::height, fcn::Rectangle::isIntersecting(), mChildren, mDimension, mOutlineSize, fcn::Graphics::popClipArea(), fcn::Graphics::pushClipArea(), fcn::Rectangle::width, fcn::Rectangle::x, and fcn::Rectangle::y.

◆ _getFocusHandler()

FocusHandler * fcn::Widget::_getFocusHandler ( )

virtual

Gets the focus handler used.

WARNING: This function is used internally and should not be called or overloaded unless you know what you are doing.

Returns: The focus handler used.

See also: _setFocusHandler

Definition at line 689 of file widget.cpp.

References mFocusHandler.

Referenced by add(), and setInternalFocusHandler().

◆ _getFocusListeners()

std::list< FocusListener * > const & fcn::Widget::_getFocusListeners ( )

virtual

Gets the focus listeners of the widget.

Returns: The focus listeners of the widget.

Definition at line 987 of file widget.cpp.

References mFocusListeners.

Referenced by fcn::FocusHandler::distributeFocusGainedEvent(), and fcn::FocusHandler::distributeFocusLostEvent().

◆ _getGuiDeathListener()

DeathListener * fcn::Widget::_getGuiDeathListener ( )

static

Get the global GUI death listener.

Returns: The current DeathListener or nullptr if none is set.

Definition at line 709 of file widget.cpp.

References mGuiDeathListener.

◆ _getInternalFocusHandler()

FocusHandler * fcn::Widget::_getInternalFocusHandler ( )

virtual

Gets the internal focus handler used.

Returns: the internalFocusHandler used. If no internal focus handler is used, Nullptr will be returned.

See also: setInternalFocusHandler

Definition at line 997 of file widget.cpp.

References mInternalFocusHandler.

Referenced by fcn::Gui::getKeyEventSource().

◆ _getKeyListeners()

std::list< KeyListener * > const & fcn::Widget::_getKeyListeners ( )

virtual

Gets the key listeners of the widget.

Returns: The key listeners of the widget.

Definition at line 982 of file widget.cpp.

References mKeyListeners.

Referenced by fcn::Gui::distributeKeyEvent().

◆ _getMouseListeners()

std::list< MouseListener * > const & fcn::Widget::_getMouseListeners ( )

virtual

Gets the mouse listeners of the widget.

Returns: The mouse listeners of the widget.

Definition at line 977 of file widget.cpp.

References mMouseListeners.

Referenced by fcn::Gui::distributeMouseEvent().

◆ _getVisibilityEventHandler()

VisibilityEventHandler * fcn::Widget::_getVisibilityEventHandler ( )

static

Gets the visibility event handler of this widget.

WARNING: This function is used internally and should not be called unless you know what you are doing.

FIXME We don't like the visibility handler being static but we leave it as is for the moment, until we come up a better solution.

Definition at line 699 of file widget.cpp.

References mVisibilityEventHandler.

Referenced by add(), distributeAncestorHiddenEvent(), distributeAncestorShownEvent(), remove(), removeAllChildren(), and setVisible().

◆ _logic()

void fcn::Widget::_logic ( )

virtual

Called whenever a widget should perform logic.

The function will call the logic function for this widget and for all its children.

WARNING: This function is used internally and should not be called or overloaded unless you know what you are doing.

Definition at line 1405 of file widget.cpp.

References logic(), and mChildren.

◆ _setFocusHandler()

void fcn::Widget::_setFocusHandler ( FocusHandler * focusHandler )

virtual

Sets the focus handler to be used.

WARNING: This function is used internally and should not be called or overloaded unless you know what you are doing.

Parameters

focusHandler The focus handler to use.

See also: _getFocusHandler

Definition at line 661 of file widget.cpp.

References fcn::FocusHandler::add(), mChildren, mFocusHandler, mInternalFocusHandler, releaseModalFocus(), releaseModalMouseInputFocus(), and widgetExists().

Referenced by add(), remove(), removeAllChildren(), and fcn::Gui::setTop().

◆ _setGuiDeathListener()

void fcn::Widget::_setGuiDeathListener ( DeathListener * deathListener )

static

Set the global GUI death listener used to observe widget deletions.

Parameters

deathListener Pointer to a DeathListener instance (ownership not transferred).

Definition at line 704 of file widget.cpp.

References mGuiDeathListener.

◆ _setParent()

void fcn::Widget::_setParent ( Widget * parent )

virtual

Sets the parent of the widget.

A parent must be a Container.

WARNING: This function is used internally and should not be called or overloaded unless you know what you are doing.

Parameters

parent The parent of the widget.

See also: getParent

Definition at line 152 of file widget.cpp.

References mParent, and Widget().

Referenced by add(), remove(), and removeAllChildren().

◆ _setVisibilityEventHandler()

void fcn::Widget::_setVisibilityEventHandler ( VisibilityEventHandler * visibilityEventHandler )

static

Sets the visibility event handler to be used.

WARNING: This function is used internally and should not be called unless you know what you are doing.

FIXME We don't like the visibility handler being static but we leave it as is for the moment, until we come up a better solution.

Parameters

visibilityEventHandler The visibility event handler to be used.

Definition at line 694 of file widget.cpp.

References mVisibilityEventHandler.

◆ adaptLayout() [1/2]

void fcn::Widget::adaptLayout ( )

inline

Execute the layouting.

In case you want to relayout a visible widget. This function will automatically perform the layout adaption from the widget.

This is a convenience wrapper that calls adaptLayout(true).

Definition at line 1399 of file widget.hpp.

References adaptLayout().

Referenced by adaptLayout(), fcn::TabbedArea::addTab(), fcn::TabbedArea::removeTab(), and fcn::TabbedArea::setSelectedTab().

◆ adaptLayout() [2/2]

void fcn::Widget::adaptLayout ( bool top )

virtual

Execute the layouting for this widget.

Parameters

top	If true, perform top-level layout adaptations as well.

Definition at line 352 of file widget.cpp.

References expandContent(), getParent(), isLayouted(), resizeToContent(), and Widget().

◆ add()

void fcn::Widget::add ( Widget * widget )

protected

Adds a child to the widget.

THIS METHOD IS NOT SAFE TO CALL INSIDE A WIDGETS LOGIC FUNCTION INSIDE ANY LISTER FUNCTIONS!

Parameters

widget The widget to add.

See also: remove, clear

Definition at line 1272 of file widget.cpp.

References _getFocusHandler(), _getVisibilityEventHandler(), _setFocusHandler(), _setParent(), mChildren, mInternalFocusHandler, setLastPosition(), Widget(), and fcn::VisibilityEventHandler::widgetShown().

Referenced by fcn::Container::add(), fcn::Container::add(), fcn::DropDown::DropDown(), and fcn::ScrollArea::setContent().

◆ addActionListener()

void fcn::Widget::addActionListener ( ActionListener * actionListener )

Adds an action listener to the widget.

When an action event is fired by the widget the action listeners of the widget will get notified.

Parameters

actionListener The action listener to add.

See also: removeActionListener

Definition at line 714 of file widget.cpp.

References mActionListeners.

Referenced by fcn::TabbedArea::addTab().

◆ addDeathListener()

void fcn::Widget::addDeathListener ( DeathListener * deathListener )

Adds a death listener to the widget.

When a death event is fired by the widget the death listeners of the widget will get notified.

Parameters

deathListener The death listener to add.

See also: removeDeathListener

Definition at line 724 of file widget.cpp.

References mDeathListeners.

◆ addFocusListener()

void fcn::Widget::addFocusListener ( FocusListener * focusListener )

Adds a focus listener to the widget.

When a focus event is fired by the widget the key listeners of the widget will get notified.

Parameters

focusListener The focus listener to add.

See also: removeFocusListener

Definition at line 744 of file widget.cpp.

References mFocusListeners.

Referenced by fcn::Button::Button(), and fcn::DropDown::DropDown().

◆ addKeyListener()

void fcn::Widget::addKeyListener ( KeyListener * keyListener )

Adds a key listener to the widget.

When a key event is fired by the widget the key listeners of the widget will get notified.

Parameters

keyListener The key listener to add.

See also: removeKeyListener

Definition at line 734 of file widget.cpp.

References mKeyListeners.

Referenced by fcn::Button::Button(), fcn::DropDown::DropDown(), fcn::ListBox::ListBox(), fcn::Slider::Slider(), fcn::TextBox::TextBox(), and fcn::TextField::TextField().

◆ addMouseListener()

void fcn::Widget::addMouseListener ( MouseListener * mouseListener )

Adds a mouse listener to the widget.

When a mouse event is fired by the widget the mouse listeners of the widget will get notified.

Parameters

mouseListener The mouse listener to add.

See also: removeMouseListener

Definition at line 754 of file widget.cpp.

References mMouseListeners.

Referenced by fcn::Button::Button(), fcn::DropDown::DropDown(), fcn::ListBox::ListBox(), fcn::ScrollArea::ScrollArea(), fcn::ScrollArea::ScrollArea(), fcn::Slider::Slider(), fcn::TextBox::TextBox(), fcn::TextField::TextField(), and fcn::Window::Window().

◆ addWidgetListener()

void fcn::Widget::addWidgetListener ( WidgetListener * widgetListener )

Adds a widget listener to the widget.

When a widget event is fired by the widget the key listeners of the widget will get notified.

Parameters

widgetListener The widget listener to add.

See also: removeWidgetListener

Definition at line 764 of file widget.cpp.

References mWidgetListeners.

Referenced by fcn::Button::Button().

◆ adjustSize()

virtual void fcn::Widget::adjustSize ( )

inlinevirtual

Resizes the widget's size to fit the content exactly.

Reimplemented in fcn::AdjustingContainer, fcn::Button, fcn::CheckBox, fcn::Container, fcn::DropDown, fcn::Icon, fcn::IconProgressBar, fcn::ImageButton, fcn::ImageProgressBar, fcn::Label, fcn::ListBox, fcn::ScrollArea, fcn::Tab, fcn::TabbedArea, fcn::TextBox, fcn::TextField, and fcn::Window.

Definition at line 1432 of file widget.hpp.

Referenced by fcn::ScrollArea::adjustSize().

◆ calculateSize()

void fcn::Widget::calculateSize ( )

protected

Checks the size against the size constraints.

Used by setDimension.

Definition at line 314 of file widget.cpp.

References mDimension, mFixedSize, mFixedSizeUsed, mMaxSize, and mMinSize.

Referenced by setDimension(), setFixedSize(), setMaxSize(), and setMinSize().

◆ distributeActionEvent()

void fcn::Widget::distributeActionEvent ( )

protected

Distributes an action event to all action listeners of the widget.

Definition at line 1113 of file widget.cpp.

References mActionEventId, and mActionListeners.

Referenced by fcn::DropDown::action(), fcn::CheckBox::keyPressed(), fcn::ListBox::keyPressed(), fcn::PasswordField::keyPressed(), fcn::Slider::keyPressed(), fcn::TextField::keyPressed(), fcn::Button::keyReleased(), fcn::CheckBox::mouseClicked(), fcn::Slider::mouseDragged(), fcn::ListBox::mousePressed(), fcn::Slider::mousePressed(), fcn::Button::mouseReleased(), fcn::Slider::mouseWheelMovedDown(), fcn::Slider::mouseWheelMovedLeft(), fcn::Slider::mouseWheelMovedRight(), fcn::Slider::mouseWheelMovedUp(), and fcn::ToggleButton::toggleSelected().

◆ distributeAncestorHiddenEvent()

void fcn::Widget::distributeAncestorHiddenEvent ( Widget * ancestor )

protected

Distributes ancestor hidden events to all of the widget's listeners.

All children will also distribute the same event.

Parameters

ancestor Ancestor widget that was hidden.

Definition at line 1071 of file widget.cpp.

References _getVisibilityEventHandler(), mChildren, mWidgetListeners, Widget(), and fcn::VisibilityEventHandler::widgetHidden().

◆ distributeAncestorMovedEvent()

void fcn::Widget::distributeAncestorMovedEvent ( Widget * ancestor )

protected

Distributes ancestor moved events to all of the widget's listeners.

All children will also distribute the same event.

Parameters

ancestor Ancestor widget that was moved.

Definition at line 1053 of file widget.cpp.

References mChildren, mWidgetListeners, and Widget().

◆ distributeAncestorShownEvent()

void fcn::Widget::distributeAncestorShownEvent ( Widget * ancestor )

protected

Distributes ancestor shown events to all of the widget's listeners.

All children will also distribute the same event.

Parameters

ancestor Ancestor widget that was shown.

Definition at line 1092 of file widget.cpp.

References _getVisibilityEventHandler(), mChildren, mWidgetListeners, Widget(), and fcn::VisibilityEventHandler::widgetShown().

◆ distributeHiddenEvent()

void fcn::Widget::distributeHiddenEvent ( )

protected

Distributes hidden events to all of the widget's listeners.

Definition at line 1044 of file widget.cpp.

References mWidgetListeners.

Referenced by setVisible().

◆ distributeMovedEvent()

void fcn::Widget::distributeMovedEvent ( )

protected

Distributes moved events to all of the widget's listeners.

Definition at line 1035 of file widget.cpp.

References mWidgetListeners.

Referenced by setDimension().

◆ distributeResizedEvent()

void fcn::Widget::distributeResizedEvent ( )

protected

Distributes resized events to all of the widget's listeners.

Definition at line 1026 of file widget.cpp.

References mWidgetListeners.

Referenced by setDimension().

◆ distributeShownEvent()

void fcn::Widget::distributeShownEvent ( )

protected

Distributes shown events to all of the widget's listeners.

Definition at line 1122 of file widget.cpp.

References mWidgetListeners.

Referenced by setVisible().

◆ draw()

virtual void fcn::Widget::draw ( Graphics * graphics )

pure virtual

Draws the widget.

The call to draw is initiated by the widget's parent. The graphics object is set up so that all drawing is relative to the widget, i.e coordinate (0,0) is the top left corner of the widget. It is not possible to draw outside of a widget's dimension. If a widget has children, the parent's draw function will always be called before the children's draw functions are called.

NOTE: A widget with children won't draw its children unless the children area given by Widget::getChildrenArea returns a none empty rectangle inside the widgets dimension. The children area is considered relative to the widget's position.

Parameters

Graphics & Rendering A graphics object to draw with.

See also: getChildrenArea, drawOutline, drawBorder

Implemented in fcn::BarGraph, fcn::Button, fcn::CheckBox, fcn::Container, fcn::CurveGraph, fcn::DropDown, fcn::Icon, fcn::IconProgressBar, fcn::ImageButton, fcn::ImageProgressBar, fcn::Label, fcn::LineGraph, fcn::ListBox, fcn::PieGraph, fcn::PointGraph, fcn::ScrollArea, fcn::Slider, fcn::Spacer, fcn::Tab, fcn::TabbedArea, fcn::TextBox, fcn::TextField, and fcn::Window.

References drawBorder(), drawOutline(), drawSelectionFrame(), getOutlineSize(), setBorderSize(), and setOutlineSize().

Referenced by _draw().

◆ drawBorder()

void fcn::Widget::drawBorder ( Graphics * graphics )

virtual

Called when a widget have a border.

Parameters

Graphics & Rendering A graphics object to draw with.

See also: setBorderSize, getBorderSize

Definition at line 111 of file widget.cpp.

References fcn::Color::a, fcn::Graphics::drawLine(), getBaseColor(), getBorderColor(), getBorderSize(), getHeight(), getWidth(), and fcn::Graphics::setColor().

Referenced by fcn::BarGraph::draw(), fcn::Button::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), draw(), fcn::Window::draw(), and fcn::CheckBox::drawBox().

◆ drawOutline()

void fcn::Widget::drawOutline ( Graphics * graphics )

virtual

Called when a widget is given a chance to draw a outline around itself.

The outline is not considered as part of the widget, it only allows a outline to be drawn around the widget, thus a outline will never be included when calculating if a widget should receive events from user input. Also a widget's outline will never be included when calculating a widget's position.

The size of the outline is calculated using the widget's outline size. If a widget has a outline size of 10 pixels than the area the drawOutline function can draw to will be the size of the widget with an additional extension of 10 pixels in each direction.

An example when drawOutline is a useful function is if a widget needs a glow around itself.

Parameters

Graphics & Rendering A graphics object to draw with.

See also: setOutlineSize, getOutlineSize

Definition at line 88 of file widget.cpp.

References fcn::Color::a, fcn::Graphics::drawLine(), getBaseColor(), getHeight(), getOutlineColor(), getOutlineSize(), getWidth(), and fcn::Graphics::setColor().

Referenced by _draw(), and draw().

◆ drawSelectionFrame()

void fcn::Widget::drawSelectionFrame ( Graphics * graphics )

virtual

Called when a widget is "active" and the selection mode is Frame or FrameWithBackground.

Currently the size of the border is used, so it will replace the border with the frame.

Parameters

Graphics & Rendering A graphics object to draw with.

See also: setSelectionMode, getSelectionMode, setSelectionColor, getSelectionColor

Definition at line 135 of file widget.cpp.

References fcn::Graphics::drawLine(), getBorderSize(), getHeight(), getSelectionColor(), getWidth(), and fcn::Graphics::setColor().

Referenced by fcn::BarGraph::draw(), fcn::Button::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), draw(), and fcn::CheckBox::drawBox().

◆ expandContent() [1/2]

void fcn::Widget::expandContent ( )

inline

Expands the child widgets to the size of this widget, calls recursively all childs.

This is a convenience wrapper that calls expandContent(true).

Definition at line 1440 of file widget.hpp.

References expandContent().

Referenced by adaptLayout(), fcn::Container::Container(), fcn::ScrollArea::expandContent(), and expandContent().

◆ expandContent() [2/2]

virtual void fcn::Widget::expandContent ( bool recursion )

inlinevirtual

Expands child widgets to fit this widget's size.

Parameters

recursion If true, call expandContent recursively on children.

Reimplemented in fcn::AdjustingContainer, fcn::Container, fcn::FlowContainer, fcn::ScrollArea, and fcn::TabbedArea.

Definition at line 1450 of file widget.hpp.

◆ findWidgetById()

Widget * fcn::Widget::findWidgetById ( std::string const & id )

protectedvirtual

Finds a widget by id.

This function can be useful when implementing a GUI generator, such as the ability to create a GUI from an XML file.

Parameters

id	The id to find a widget by.

Returns: The widget with the corresponding id, Nullptr if no widget is found.

Reimplemented in fcn::Container.

Definition at line 1184 of file widget.cpp.

References findWidgetById(), getId(), mChildren, and Widget().

Referenced by fcn::Container::findWidgetById(), and findWidgetById().

◆ focusNext()

void fcn::Widget::focusNext ( )

virtual

Focuses the next widget in the widget.

See also: moveToBottom

Definition at line 1316 of file widget.cpp.

References mChildren.

◆ focusPrevious()

void fcn::Widget::focusPrevious ( )

virtual

Focuses the previous widget in the widget.

See also: moveToBottom

Definition at line 1343 of file widget.cpp.

References mChildren.

◆ fontChanged()

virtual void fcn::Widget::fontChanged ( )

inlinevirtual

Called when the font has changed.

If the change is global, this function will only be called if the widget doesn't have a font already set.

Reimplemented in fcn::Button, and fcn::TextBox.

Definition at line 999 of file widget.hpp.

Referenced by setFont().

◆ getAbsolutePosition()

void fcn::Widget::getAbsolutePosition	(	int &	x,
		int &	y ) const

virtual

Gets the absolute position on the screen for the widget.

Parameters

x	The absolute x coordinate will be stored in this parameter.
y	The absolute y coordinate will be stored in this parameter.

Definition at line 774 of file widget.cpp.

References getAbsolutePosition(), getChildrenArea(), getParent(), isLastPositionSet(), mDimension, mLastX, mLastY, fcn::Rectangle::x, and fcn::Rectangle::y.

Referenced by fcn::Gui::distributeMouseEvent(), getAbsolutePosition(), fcn::Gui::getWidgetAt(), fcn::Gui::getWidgetsAt(), fcn::Gui::handleHiddenWidgets(), fcn::Gui::handleMousePressed(), fcn::Gui::handleMouseReleased(), fcn::Gui::handleMouseWheelMovedDown(), fcn::Gui::handleMouseWheelMovedLeft(), fcn::Gui::handleMouseWheelMovedRight(), fcn::Gui::handleMouseWheelMovedUp(), fcn::Gui::handleShownWidgets(), remove(), and removeAllChildren().

◆ getActionEventId()

std::string const & fcn::Widget::getActionEventId ( ) const

Gets the action event identifier of the widget.

Returns: The action event identifier of the widget.

See also: setActionEventId

Definition at line 487 of file widget.cpp.

References mActionEventId.

◆ getBackgroundColor()

Color const & fcn::Widget::getBackgroundColor ( ) const

Gets the background color.

See also: setBackgroundColor

Definition at line 616 of file widget.cpp.

References mBackgroundColor.

Referenced by fcn::BarGraph::draw(), fcn::CurveGraph::draw(), fcn::DropDown::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageProgressBar::draw(), fcn::LineGraph::draw(), fcn::ListBox::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), fcn::TextBox::draw(), fcn::TextField::draw(), fcn::ScrollArea::drawBackground(), fcn::CheckBox::drawBox(), and fcn::CheckBox::drawRhombus().

◆ getBaseColor()

Color const & fcn::Widget::getBaseColor ( ) const

Gets the base color.

Returns: The base color.

See also: setBaseColor

Definition at line 596 of file widget.cpp.

References mBaseColor.

◆ getBorderColor()

Color const & fcn::Widget::getBorderColor ( ) const

Gets the border color.

Returns: The border color.

See also: setBorderColor

Definition at line 646 of file widget.cpp.

References mBorderColor.

Referenced by drawBorder().

◆ getBorderSize()

unsigned int fcn::Widget::getBorderSize ( ) const

Gets the size of the widget's border.

The border is considered as part of the widget.

A border size of 0 means that the widget has no border. The default border size is 0.

Returns: The size of the widget's border.

See also: setBorderSize, drawBorder

Definition at line 381 of file widget.cpp.

References mBorderSize.

Referenced by fcn::AdjustingContainer::adjustSize(), fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::BarGraph::draw(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), fcn::Window::draw(), drawBorder(), fcn::CheckBox::drawBox(), fcn::Window::drawInnerBorder(), drawSelectionFrame(), fcn::AdjustingContainer::getChildrenArea(), fcn::Container::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), fcn::ScrollArea::getHorizontalMaxScroll(), fcn::ScrollArea::getVerticalMaxScroll(), fcn::ScrollArea::logic(), fcn::Window::mousePressed(), fcn::FlowContainer::resizeToContent(), and fcn::ScrollArea::showWidgetPart().

◆ getChildren()

std::list< Widget * > const & fcn::Widget::getChildren ( ) const

protected

Gets the children of the widget.

Returns: A list of the widgets children.

Definition at line 1415 of file widget.cpp.

References mChildren.

Referenced by fcn::Container::getChild().

◆ getChildrenArea()

Rectangle fcn::Widget::getChildrenArea ( )

virtual

Gets the area of the widget occupied by the widget's children.

By default this method returns an empty rectangle as not all widgets are containers. If you want to make a container this method should return the area where the children resides. This method is used when drawing children of a widget when computing clip rectangles for the children.

NOTE: The returned rectangle should be relative to the widget, i.e a rectangle with x and y coordinate (0,0) and with width and height the same as the widget will let the children draw themselves in the whole widget.

An example of a widget that overloads this method is ScrollArea. A ScrollArea has a view of its constant and that view is the children area. The size of a ScrollArea's children area might vary depending on if the scroll bars of the ScrollArea is shown or not.

Returns: The area of the widget occupied by the widget's children.

Reimplemented in fcn::AdjustingContainer, fcn::Container, fcn::DropDown, fcn::ScrollArea, fcn::Tab, fcn::TabbedArea, and fcn::Window.

Definition at line 992 of file widget.cpp.

Referenced by _draw(), fcn::DropDown::adjustHeight(), getAbsolutePosition(), getWidgetAt(), fcn::TextBox::keyPressed(), and showWidgetPart().

◆ getChildrenCount()

unsigned int fcn::Widget::getChildrenCount ( ) const

Gets how many childs the widget have.

Returns: The children count of the widget.

Definition at line 247 of file widget.cpp.

References mChildren.

Referenced by fcn::Container::getChild().

◆ getDimension()

Rectangle const & fcn::Widget::getDimension ( ) const

Gets the dimension of the widget.

The dimension is relative to the widget's parent.

Returns: The dimension of the widget.

See also: getDimension, setX, getX, setY, getY, setPosition

Definition at line 482 of file widget.cpp.

References mDimension.

Referenced by fcn::FlowContainer::adjustContent(), getWidgetAt(), getWidgetsIn(), and fcn::Container::resizeToContent().

◆ getFixedSize()

Size const & fcn::Widget::getFixedSize ( ) const

Gets the fixed size of the widget.

Returns: The fixed size of the widget.

See also: setFixedSize, isFixedSize

Definition at line 304 of file widget.cpp.

References mFixedSize.

◆ getFont()

Font * fcn::Widget::getFont ( ) const

Gets the font set for the widget.

If no font has been set, the global font will be returned. If no global font has been set, the default font will be returned.

Returns: The font set for the widget.

See also: setFont, setGlobalFont

Definition at line 796 of file widget.cpp.

References mCurrentFont, mDefaultFont, and mGlobalFont.

Referenced by fcn::DropDown::adjustHeight(), fcn::TextField::adjustHeight(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::ListBox::adjustSizeImpl(), fcn::TextBox::adjustSizeImpl(), fcn::TextField::adjustSizeImpl(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::DropDown::draw(), fcn::ImageButton::draw(), fcn::Label::draw(), fcn::ListBox::draw(), fcn::TextBox::draw(), fcn::TextField::draw(), fcn::Window::draw(), fcn::TextBox::drawCaret(), fcn::TextField::fixScroll(), fcn::ListBox::getRowHeight(), fcn::TextBox::keyPressed(), fcn::TextBox::mousePressed(), fcn::TextField::mousePressed(), and fcn::TextBox::scrollToCaret().

◆ getForegroundColor()

Color const & fcn::Widget::getForegroundColor ( ) const

Gets the foreground color.

See also: setForegroundColor

Definition at line 606 of file widget.cpp.

References mForegroundColor.

Referenced by fcn::Button::draw(), fcn::CheckBox::draw(), fcn::DropDown::draw(), fcn::ImageButton::draw(), fcn::Label::draw(), fcn::ListBox::draw(), fcn::TextBox::draw(), fcn::TextField::draw(), fcn::Window::draw(), fcn::CheckBox::drawBox(), fcn::DropDown::drawButton(), fcn::TextBox::drawCaret(), fcn::TextField::drawCaret(), fcn::ScrollArea::drawDownButton(), fcn::ScrollArea::drawLeftButton(), fcn::Slider::drawMarker(), fcn::CheckBox::drawRhombus(), fcn::ScrollArea::drawRightButton(), and fcn::ScrollArea::drawUpButton().

◆ getHeight()

int fcn::Widget::getHeight ( ) const

Gets the height of the widget.

Returns: The height of the widget.

See also: setHeight, setWidth, getWidth, setSize, setDimension, getDimension

Definition at line 183 of file widget.cpp.

References mDimension.

Referenced by fcn::TextField::adjustHeight(), fcn::AdjustingContainer::adjustSize(), fcn::Container::adjustSize(), fcn::TabbedArea::adjustSize(), fcn::Window::adjustSize(), fcn::CheckBox::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::TabbedArea::adjustTabPositions(), fcn::ScrollArea::checkPolicies(), fcn::BarGraph::draw(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::DropDown::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::ListBox::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), fcn::ScrollArea::draw(), fcn::Slider::draw(), fcn::Tab::draw(), fcn::TabbedArea::draw(), fcn::TextBox::draw(), fcn::TextField::draw(), fcn::Window::draw(), drawBorder(), fcn::CheckBox::drawBox(), fcn::TextBox::drawCaret(), fcn::Window::drawInnerBorder(), fcn::Slider::drawMarker(), drawOutline(), fcn::CheckBox::drawRhombus(), drawSelectionFrame(), fcn::DropDown::dropDown(), fcn::ScrollArea::expandContent(), fcn::AdjustingContainer::getChildrenArea(), fcn::Container::getChildrenArea(), fcn::DropDown::getChildrenArea(), fcn::ScrollArea::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), fcn::ScrollArea::getDownButtonDimension(), fcn::ScrollArea::getHorizontalBarDimension(), fcn::ScrollArea::getLeftButtonDimension(), fcn::ScrollArea::getRightButtonDimension(), fcn::ScrollArea::getVerticalBarDimension(), fcn::ScrollArea::getVerticalMarkerDimension(), fcn::ScrollArea::getVerticalMaxScroll(), fcn::Gui::handleHiddenWidgets(), fcn::Gui::handleShownWidgets(), fcn::Slider::markerPositionToValue(), fcn::Slider::mouseDragged(), fcn::DropDown::mousePressed(), fcn::Slider::mousePressed(), fcn::DropDown::mouseReleased(), resizeToChildren(), fcn::FlowContainer::resizeToContent(), fcn::Spacer::resizeToContent(), fcn::ScrollArea::setDimension(), fcn::ScrollArea::setHeight(), and fcn::Slider::valueToMarkerPosition().

◆ getId()

std::string const & fcn::Widget::getId ( ) const

Gets the id of a widget.

An id can be useful if a widget needs to be identified in a container. For example, if widgets are created by an XML document, a certain widget can be retrieved given that the widget has an id.

Returns: The id of the widget.

See also: setId, Container::findWidgetById

Definition at line 1021 of file widget.cpp.

References mId.

Referenced by findWidgetById().

◆ getLastPosition()

void fcn::Widget::getLastPosition	(	int &	x,
		int &	y ) const

Retrieves the last stored position used by layout or event logic.

Parameters

x	Output parameter receiving the last x coordinate.
y	Output parameter receiving the last y coordinate.

Definition at line 1420 of file widget.cpp.

References mLastX, and mLastY.

◆ getMarginBottom()

int fcn::Widget::getMarginBottom ( ) const

Gets the bottom margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Returns: The bottom margin of the widget.

See also: setMarginBottom

Definition at line 419 of file widget.cpp.

References mMarginBottom.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::FlowContainer::resizeToContent().

◆ getMarginLeft()

int fcn::Widget::getMarginLeft ( ) const

Gets the left margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Returns: The left margin of the widget.

See also: setMarginLeft

Definition at line 429 of file widget.cpp.

References mMarginLeft.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::FlowContainer::resizeToContent().

◆ getMarginRight()

int fcn::Widget::getMarginRight ( ) const

Gets the right margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Returns: The right margin of the widget.

See also: setMarginRight

Definition at line 409 of file widget.cpp.

References mMarginRight.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::FlowContainer::resizeToContent().

◆ getMarginTop()

int fcn::Widget::getMarginTop ( ) const

Gets the top margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Returns: The top margin of the widget.

See also: setMarginTop

Definition at line 399 of file widget.cpp.

References mMarginTop.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::FlowContainer::resizeToContent().

◆ getMaxSize()

Size const & fcn::Widget::getMaxSize ( ) const

Gets the maximal dimension of the widget.

Returns: The maximal size of the widget.

See also: setMaxSize

Definition at line 288 of file widget.cpp.

References mMaxSize.

◆ getMinSize()

Size const & fcn::Widget::getMinSize ( ) const

Gets the minimal dimension of the widget.

Returns: The minimal size of the widget.

See also: setMinSize

Definition at line 277 of file widget.cpp.

References mMinSize.

Referenced by fcn::ScrollArea::adjustSize(), fcn::FlowContainer::resizeToContent(), fcn::ScrollArea::resizeToContent(), and fcn::Spacer::resizeToContent().

◆ getOutlineColor()

Color const & fcn::Widget::getOutlineColor ( ) const

Gets the outline color.

Returns: The outline color.

See also: setOutlineColor

Definition at line 636 of file widget.cpp.

References mOutlineColor.

Referenced by drawOutline().

◆ getOutlineSize()

unsigned int fcn::Widget::getOutlineSize ( ) const

Gets the size of the widget's outline.

The outline is not considered as part of the widget, it only allows a outline to be drawn around the widget, thus a outline will never be included when calculating if a widget should receive events from user input. Also a widget's outline will never be included when calculating a widget's position.

A outline size of 0 means that the widget has no outline. The default outline size is 0.

Returns: The size of the widget's outline.

See also: setOutlineSize, drawOutline

Definition at line 371 of file widget.cpp.

References mOutlineSize.

Referenced by draw(), and drawOutline().

◆ getPaddingBottom()

unsigned int fcn::Widget::getPaddingBottom ( ) const

Gets the bottom padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Returns: The bottom padding of the widget.

See also: setPaddingBottom

Definition at line 467 of file widget.cpp.

References mPaddingBottom.

Referenced by fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::Icon::draw(), fcn::ImageButton::draw(), fcn::Label::draw(), fcn::CheckBox::drawBox(), fcn::Window::drawInnerBorder(), fcn::Container::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), and fcn::FlowContainer::resizeToContent().

◆ getPaddingLeft()

unsigned int fcn::Widget::getPaddingLeft ( ) const

Gets the left padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Returns: The left padding of the widget.

See also: setPaddingLeft

Definition at line 477 of file widget.cpp.

References mPaddingLeft.

Referenced by fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::Window::draw(), fcn::CheckBox::drawBox(), fcn::Window::drawInnerBorder(), fcn::Container::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), and fcn::FlowContainer::resizeToContent().

◆ getPaddingRight()

unsigned int fcn::Widget::getPaddingRight ( ) const

Gets the right padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Returns: The right padding of the widget.

See also: setPaddingRight

Definition at line 457 of file widget.cpp.

References mPaddingRight.

Referenced by fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::Button::draw(), fcn::Icon::draw(), fcn::ImageButton::draw(), fcn::Label::draw(), fcn::Window::draw(), fcn::Window::drawInnerBorder(), fcn::Container::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), and fcn::FlowContainer::resizeToContent().

◆ getPaddingTop()

unsigned int fcn::Widget::getPaddingTop ( ) const

Gets the top padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Returns: The top padding of the widget.

See also: setPaddingTop

Definition at line 447 of file widget.cpp.

References mPaddingTop.

Referenced by fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::Button::draw(), fcn::CheckBox::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::Window::draw(), fcn::CheckBox::drawBox(), fcn::Window::drawInnerBorder(), fcn::Container::getChildrenArea(), fcn::Tab::getChildrenArea(), fcn::TabbedArea::getChildrenArea(), fcn::Window::getChildrenArea(), fcn::Window::mousePressed(), and fcn::FlowContainer::resizeToContent().

◆ getParent()

Widget * fcn::Widget::getParent ( ) const

virtual

Gets the widget's parent container.

Returns: The widget's parent container. Nullptr if the widget has no parent.

Definition at line 157 of file widget.cpp.

References mParent, and Widget().

Referenced by adaptLayout(), fcn::DropDown::adjustHeight(), fcn::Gui::distributeKeyEvent(), fcn::Gui::distributeMouseEvent(), fcn::DropDown::dropDown(), fcn::Container::expandContent(), getAbsolutePosition(), getTop(), isModalFocused(), isModalMouseInputFocused(), isVisible(), fcn::TextBox::keyPressed(), fcn::Window::mousePressed(), and fcn::FlowContainer::resizeToContent().

◆ getSelectionColor()

Color const & fcn::Widget::getSelectionColor ( ) const

Gets the selection color.

Returns: The selection color.

See also: setSelectionColor

Definition at line 626 of file widget.cpp.

References mSelectionColor.

Referenced by fcn::BarGraph::draw(), fcn::Button::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::DropDown::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::LineGraph::draw(), fcn::ListBox::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), fcn::TextField::draw(), fcn::CheckBox::drawBox(), fcn::CheckBox::drawRhombus(), and drawSelectionFrame().

◆ getSelectionMode()

Widget::SelectionMode fcn::Widget::getSelectionMode ( ) const

Gets the selection mode.

Returns: The selection mode that is used when the widget is "active".

See also: setSelectionMode

Definition at line 656 of file widget.cpp.

References mSelectionMode.

Referenced by fcn::BarGraph::draw(), fcn::Button::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), and fcn::CheckBox::drawBox().

◆ getTop()

Widget * fcn::Widget::getTop ( ) const

virtual

Gets the top widget, or top parent, of this widget.

Returns: The top widget, or top parent, for this widget. Nullptr if no top widget exists (this widget doesn't have a parent).

Definition at line 1138 of file widget.cpp.

References getParent(), and Widget().

◆ getVisibleChildrenCount()

unsigned int fcn::Widget::getVisibleChildrenCount ( ) const

Gets how many visible childs the widget have.

Returns: The visible children count of the widget.

Definition at line 258 of file widget.cpp.

References isVisible(), and mChildren.

◆ getWidgetAt() [1/2]

Widget * fcn::Widget::getWidgetAt	(	int	x,
		int	y )

inline

Gets a widget at a certain position in the widget.

This function is used to decide which gets mouse input, thus it can be overloaded to change that behaviour.

NOTE: This always returns Nullptr if the widget is not a container.

Parameters

x	The x coordinate of the widget to get.
y	The y coordinate of the widget to get.

Returns: The widget at the specified coordinate, Nullptr if no widget is found.

Definition at line 1135 of file widget.hpp.

References getWidgetAt(), and Widget().

Referenced by fcn::Gui::getWidgetAt(), getWidgetAt(), and fcn::Gui::getWidgetsAt().

◆ getWidgetAt() [2/2]

Widget * fcn::Widget::getWidgetAt	(	int	x,
		int	y,
		Widget *	exclude )

virtual

Variant of getWidgetAt that allows excluding a specific widget from the hit-test.

Parameters

x	The x coordinate of the widget to get.
y	The y coordinate of the widget to get.
exclude	Widget to exclude from search, if Nullptr no widgets get excluded.

Returns: The widget at the specified coordinate, Nullptr if no widget is found.

Definition at line 954 of file widget.cpp.

References getChildrenArea(), getDimension(), fcn::Rectangle::isContaining(), isVisible(), mChildren, Widget(), fcn::Rectangle::x, and fcn::Rectangle::y.

◆ getWidgetsIn() [1/2]

std::list< Widget * > fcn::Widget::getWidgetsIn ( Rectangle const & area )

inline

Gets all widgets inside a certain area of the widget.

NOTE: This always returns an emtpy list if the widget is not a container.

Parameters

area	The area to check.

Returns: A list of widgets. An empty list if no widgets was found.

Definition at line 1160 of file widget.hpp.

References getWidgetsIn().

Referenced by getWidgetsIn().

◆ getWidgetsIn() [2/2]

std::list< Widget * > fcn::Widget::getWidgetsIn	(	Rectangle const &	area,
		Widget *	ignore )

virtual

Gets all widgets inside a certain area of the widget.

NOTE: This always returns an empty list if the widget is not a container.

Parameters

area	The area to check.
ignore	Optional widget pointer to exclude from the results.

Returns: A list of widgets found inside area. Empty list if none.

Definition at line 1155 of file widget.cpp.

References getDimension(), fcn::Rectangle::isIntersecting(), mChildren, and Widget().

◆ getWidth()

int fcn::Widget::getWidth ( ) const

Gets the width of the widget.

Returns: The width of the widget.

See also: setWidth, setHeight, getHeight, setSize, setDimension, getDimension

Definition at line 170 of file widget.cpp.

References mDimension.

◆ getX()

int fcn::Widget::getX ( ) const

Gets the x coordinate of the widget.

The coordinate is relative to the widget's parent.

Returns: The x coordinate of the widget.

See also: setX, setY, getY, setPosition, setDimension, getDimension

Definition at line 196 of file widget.cpp.

References mDimension.

Referenced by fcn::Window::mouseDragged(), resizeToChildren(), fcn::ScrollArea::showWidgetPart(), and showWidgetPart().

◆ getY()

int fcn::Widget::getY ( ) const

Gets the y coordinate of the widget.

The coordinate is relative to the widget's parent.

Returns: The y coordinate of the widget.

See also: setY, setX, getX, setPosition, setDimension, getDimension

Definition at line 209 of file widget.cpp.

References mDimension.

Referenced by fcn::DropDown::adjustHeight(), fcn::ListBox::draw(), fcn::Window::mouseDragged(), resizeToChildren(), fcn::ScrollArea::showWidgetPart(), and showWidgetPart().

◆ isEnabled()

bool fcn::Widget::isEnabled ( ) const

Checks if the widget is enabled.

A disabled widget will never receive mouse or key events.

Returns: True if widget is enabled, false otherwise.

See also: setEnabled

Definition at line 869 of file widget.cpp.

References isVisible(), and mEnabled.

Referenced by fcn::Gui::distributeKeyEvent(), fcn::Gui::distributeMouseEvent(), fcn::Gui::handleHiddenWidgets(), fcn::Gui::handleShownWidgets(), and isFocusable().

◆ isFixedSize()

bool fcn::Widget::isFixedSize ( ) const

Gets if the widget use a fixed size.

Returns: True if the widget use a fixed size, otherwise false.

See also: setFixedSize, getFixedSize

Definition at line 309 of file widget.cpp.

References mFixedSizeUsed.

◆ isFocusable()

bool fcn::Widget::isFocusable ( ) const

Checks if a widget is focusable.

Returns: True if the widget should be focusable, false otherwise.

See also: setFocusable

Definition at line 515 of file widget.cpp.

References isEnabled(), isVisible(), and mFocusable.

Referenced by fcn::TabbedArea::mousePressed(), and requestFocus().

◆ isFocused()

bool fcn::Widget::isFocused ( ) const

virtual

Checks if the widget is focused.

Returns: True if the widget is focused, false otherwise.

Definition at line 497 of file widget.cpp.

References mFocusHandler.

Referenced by fcn::BarGraph::draw(), fcn::Button::draw(), fcn::Container::draw(), fcn::CurveGraph::draw(), fcn::DropDown::draw(), fcn::Icon::draw(), fcn::IconProgressBar::draw(), fcn::ImageButton::draw(), fcn::ImageProgressBar::draw(), fcn::Label::draw(), fcn::LineGraph::draw(), fcn::PieGraph::draw(), fcn::PointGraph::draw(), fcn::TextBox::draw(), fcn::TextField::draw(), fcn::CheckBox::drawBox(), fcn::Slider::drawMarker(), fcn::CheckBox::drawRhombus(), fcn::TextField::fixScroll(), fcn::TabbedArea::keyPressed(), fcn::DropDown::mouseWheelMovedDown(), fcn::ListBox::mouseWheelMovedDown(), fcn::DropDown::mouseWheelMovedUp(), fcn::ListBox::mouseWheelMovedUp(), setFocusable(), and setVisible().

◆ isHorizontalExpand()

bool fcn::Widget::isHorizontalExpand ( ) const

Gets if widget is horizontal expandable.

Returns: True if the widget can be horizontal expanded, otherwise false.

See also: setHorizontalExpand

Definition at line 347 of file widget.cpp.

References mHExpand.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::Container::expandContent().

◆ isLastPositionSet()

bool fcn::Widget::isLastPositionSet ( ) const

Returns whether a last position has been stored for this widget.

Returns: True if a last position is set, false otherwise.

Definition at line 1432 of file widget.cpp.

References mLastX, and mLastY.

Referenced by getAbsolutePosition().

◆ isLayouted()

virtual bool fcn::Widget::isLayouted ( )

inlinevirtual

Helper function to decide if we need to layout.

Reimplemented in fcn::Container.

Definition at line 1455 of file widget.hpp.

Referenced by adaptLayout().

◆ isModalFocusable()

bool fcn::Widget::isModalFocusable ( ) const

virtual

Checks if a widget is modal focusable.

Returns: True if no other widget is modal focused, false otherwise.

See also: requestModalFocus, releaseModalFocus

Definition at line 874 of file widget.cpp.

References mFocusHandler.

◆ isModalFocused()

bool fcn::Widget::isModalFocused ( ) const

virtual

Checks if the widget or it's parent has modal focus.

Returns: True if the widget has modal focus, false otherwise.

See also: requestModalFocus, releaseModalFocus

Definition at line 928 of file widget.cpp.

References getParent(), isModalFocused(), and mFocusHandler.

Referenced by fcn::Gui::distributeKeyEvent(), fcn::Gui::distributeMouseEvent(), fcn::Gui::handleMousePressed(), and isModalFocused().

◆ isModalMouseInputFocusable()

bool fcn::Widget::isModalMouseInputFocusable ( ) const

virtual

Checks if a widget is modal mouse input focusable.

Returns: True if no other widget is modal mouse input focused, false otherwise.

See also: requestModalMouseInputFocus, releaseModalMouseInputFocus

Definition at line 883 of file widget.cpp.

References mFocusHandler.

◆ isModalMouseInputFocused()

bool fcn::Widget::isModalMouseInputFocused ( ) const

virtual

Checks if the widget or it's parent has modal mouse input focus.

Returns: True if the widget has modal mouse input focus, false otherwise.

See also: requestModalMouseInputFocus, releaseModalMouseInputFocus

Definition at line 941 of file widget.cpp.

References getParent(), isModalMouseInputFocused(), and mFocusHandler.

Referenced by fcn::Gui::distributeMouseEvent(), fcn::Gui::getMouseEventSource(), fcn::Gui::handleMouseMoved(), isModalMouseInputFocused(), and fcn::DropDown::mouseReleased().

◆ isSetVisible()

bool fcn::Widget::isSetVisible ( ) const

Checks if the widget setting is visible.

Returns: True if widget setting is be visible, false otherwise.

Definition at line 586 of file widget.cpp.

References mVisible.

◆ isTabInEnabled()

bool fcn::Widget::isTabInEnabled ( ) const

Checks if tab in is enabled.

Tab in means that you can set focus to this widget by pressing the tab button. If tab in is disabled then the focus handler will skip this widget and focus the next in its focus order.

Returns: True if tab in is enabled, false otherwise.

See also: setTabInEnabled

Definition at line 835 of file widget.cpp.

References mTabIn.

◆ isTabOutEnabled()

bool fcn::Widget::isTabOutEnabled ( ) const

Checks if tab out is enabled.

Tab out means that you can lose focus to this widget by pressing the tab button. If tab out is disabled then the FocusHandler ignores tabbing and focus will stay with this widget.

Returns: True if tab out is enabled, false otherwise.

See also: setTabOutEnabled

Definition at line 845 of file widget.cpp.

References mTabOut.

◆ isVerticalExpand()

bool fcn::Widget::isVerticalExpand ( ) const

Gets if widget is vertical expandable.

Returns: True if the widget can be vertical expanded, otherwise false.

See also: setVerticalExpand

Definition at line 337 of file widget.cpp.

References mVExpand.

Referenced by fcn::FlowContainer::adjustContent(), and fcn::Container::expandContent().

◆ isVisible()

bool fcn::Widget::isVisible ( ) const

Checks if the widget is visible.

Returns: True if widget is be visible, false otherwise.

See also: setVisible

Definition at line 578 of file widget.cpp.

References getParent(), isVisible(), and mVisible.

Referenced by fcn::FlowContainer::adjustContent(), getVisibleChildrenCount(), getWidgetAt(), isEnabled(), isFocusable(), and isVisible().

◆ logic()

virtual void fcn::Widget::logic ( )

inlinevirtual

Called for all widgets in the gui each time Gui::logic is called.

You can do logic stuff here like playing an animation.

See also: Gui::logic

Reimplemented in fcn::ListBox, and fcn::ScrollArea.

Definition at line 378 of file widget.hpp.

Referenced by _logic(), and fcn::ScrollArea::logic().

◆ moveToBottom()

void fcn::Widget::moveToBottom ( Widget * widget )

virtual

Moves a widget in this widget to the bottom of this widget.

The moved widget will be drawn below all other widgets in this widget.

This method is safe to call at any time.

Parameters

widget The widget to move to the bottom.

See also: moveToTop

Definition at line 1303 of file widget.cpp.

References mChildren, and Widget().

◆ moveToTop()

void fcn::Widget::moveToTop ( Widget * widget )

virtual

Moves a widget to the top of this widget.

The moved widget will be drawn above all other widgets in this widget.

This method is safe to call at any time.

Parameters

widget The widget to move to the top.

See also: moveToBottom

Definition at line 1290 of file widget.cpp.

References mChildren, and Widget().

Referenced by fcn::DropDown::dropDown(), and fcn::Window::mousePressed().

◆ releaseModalFocus()

void fcn::Widget::releaseModalFocus ( )

virtual

Releases modal focus.

Modal focus will only be released if the widget has modal focus.

See also: requestModalFocus, isModalFocused

Definition at line 910 of file widget.cpp.

References mFocusHandler.

Referenced by _setFocusHandler().

◆ releaseModalMouseInputFocus()

void fcn::Widget::releaseModalMouseInputFocus ( )

virtual

Releases modal mouse input focus.

Modal mouse input focus will only be released if the widget has modal mouse input focus.

See also: requestModalMouseInputFocus, isModalMouseInputFocused

Definition at line 919 of file widget.cpp.

References mFocusHandler.

Referenced by _setFocusHandler(), fcn::DropDown::action(), fcn::DropDown::mousePressed(), and fcn::DropDown::mouseReleased().

◆ remove()

void fcn::Widget::remove ( Widget * widget )

protectedvirtual

Removes a specific child from the widget.

THIS METHOD IS NOT SAFE TO CALL INSIDE A WIDGETS LOGIC FUNCTION INSIDE ANY LISTER FUNCTIONS!

Parameters

widget The widget to remove.

See also: removeAllChildren

Reimplemented in fcn::AdjustingContainer, and fcn::Container.

Definition at line 1248 of file widget.cpp.

References _getVisibilityEventHandler(), _setFocusHandler(), _setParent(), getAbsolutePosition(), mChildren, setLastPosition(), Widget(), and fcn::VisibilityEventHandler::widgetHidden().

Referenced by fcn::Container::remove().

◆ removeActionListener()

void fcn::Widget::removeActionListener ( ActionListener * actionListener )

Removes an added action listener from the widget.

Parameters

actionListener The action listener to remove.

See also: addActionListener

Definition at line 719 of file widget.cpp.

References mActionListeners.

◆ removeAllChildren()

void fcn::Widget::removeAllChildren ( )

protectedvirtual

Remvoes all children from the widget.

THIS METHOD IS NOT SAFE TO CALL INSIDE A WIDGETS LOGIC FUNCTION INSIDE ANY LISTER FUNCTIONS!

See also: remove

Reimplemented in fcn::AdjustingContainer, and fcn::Container.

Definition at line 1228 of file widget.cpp.

References _getVisibilityEventHandler(), _setFocusHandler(), _setParent(), getAbsolutePosition(), mChildren, setLastPosition(), Widget(), and fcn::VisibilityEventHandler::widgetHidden().

Referenced by fcn::Container::removeAllChildren(), and fcn::ScrollArea::setContent().

◆ removeDeathListener()

void fcn::Widget::removeDeathListener ( DeathListener * deathListener )

Removes an added death listener from the widget.

Parameters

deathListener The death listener to remove.

See also: addDeathListener

Definition at line 729 of file widget.cpp.

References mDeathListeners.

◆ removeFocusListener()

void fcn::Widget::removeFocusListener ( FocusListener * focusListener )

Removes an added focus listener from the widget.

Parameters

focusListener The focus listener to remove.

See also: addFocusListener

Definition at line 749 of file widget.cpp.

References mFocusListeners.

◆ removeKeyListener()

void fcn::Widget::removeKeyListener ( KeyListener * keyListener )

Removes an added key listener from the widget.

Parameters

keyListener The key listener to remove.

See also: addKeyListener

Definition at line 739 of file widget.cpp.

References mKeyListeners.

◆ removeMouseListener()

void fcn::Widget::removeMouseListener ( MouseListener * mouseListener )

Removes an added mouse listener from the widget.

Parameters

mouseListener The mouse listener to remove.

See also: addMouseListener

Definition at line 759 of file widget.cpp.

References mMouseListeners.

◆ removeWidgetListener()

void fcn::Widget::removeWidgetListener ( WidgetListener * widgetListener )

Removes an added widget listener from the widget.

Parameters

widgetListener The widget listener to remove.

See also: addWidgetListener

Definition at line 769 of file widget.cpp.

References mWidgetListeners.

◆ requestFocus()

void fcn::Widget::requestFocus ( )

virtual

Requests focus for the widget.

A widget will only receive focus if it is focusable.

Definition at line 520 of file widget.cpp.

References isFocusable(), and mFocusHandler.

Referenced by fcn::Gui::handleMousePressed(), and fcn::TabbedArea::mousePressed().

◆ requestModalFocus()

void fcn::Widget::requestModalFocus ( )

virtual

Requests modal focus.

When a widget has modal focus, only that widget and it's children may receive input.

Exceptions

Exception if another widget already has modal focus.

See also: releaseModalFocus, isModalFocused

Definition at line 892 of file widget.cpp.

References mFocusHandler.

◆ requestModalMouseInputFocus()

void fcn::Widget::requestModalMouseInputFocus ( )

virtual

Requests modal mouse input focus.

When a widget has modal input focus that widget will be the only widget receiving input even if the input occurs outside of the widget and no matter what the input is.

Exceptions

Exception if another widget already has modal focus.

See also: releaseModalMouseInputFocus, isModalMouseInputFocused

Definition at line 901 of file widget.cpp.

References mFocusHandler.

Referenced by fcn::DropDown::mousePressed().

◆ requestMoveToBottom()

void fcn::Widget::requestMoveToBottom ( )

virtual

Requests a move to the bottom in the parent widget.

Definition at line 538 of file widget.cpp.

References mParent.

◆ requestMoveToTop()

void fcn::Widget::requestMoveToTop ( )

virtual

Requests a move to the top in the parent widget.

Definition at line 531 of file widget.cpp.

References mParent.

◆ resizeToChildren()

void fcn::Widget::resizeToChildren ( )

protected

Resizes the widget to fit it's children exactly.

Definition at line 1170 of file widget.cpp.

References getHeight(), getWidth(), getX(), getY(), mChildren, setSize(), and Widget().

Referenced by fcn::Container::adjustSize(), fcn::Window::adjustSize(), and fcn::TabbedArea::resizeToContent().

◆ resizeToContent() [1/2]

void fcn::Widget::resizeToContent ( )

inline

Resizes the widget's size to fit the content exactly, calls recursively all childs.

This is a convenience wrapper that calls resizeToContent(true).

Definition at line 1417 of file widget.hpp.

References resizeToContent().

Referenced by adaptLayout(), fcn::Container::Container(), fcn::ScrollArea::resizeToContent(), and resizeToContent().

◆ resizeToContent() [2/2]

virtual void fcn::Widget::resizeToContent ( bool recursion )

inlinevirtual

Resize this widget to fit its content.

Parameters

recursion If true, perform the resize operation recursively on children.

Reimplemented in fcn::AdjustingContainer, fcn::Button, fcn::Container, fcn::DropDown, fcn::FlowContainer, fcn::Icon, fcn::IconProgressBar, fcn::ImageButton, fcn::ImageProgressBar, fcn::Label, fcn::ListBox, fcn::ScrollArea, fcn::Spacer, fcn::TabbedArea, fcn::TextBox, and fcn::TextField.

Definition at line 1427 of file widget.hpp.

◆ setActionEventId()

void fcn::Widget::setActionEventId ( std::string const & actionEventId )

Sets the action event identifier of the widget.

The identifier is used to be able to identify which action has occurred.

NOTE: An action event identifier should not be used to identify a certain widget but rather a certain event in your application. Several widgets can have the same action event identifier.

Parameters

actionEventId The action event identifier.

See also: getActionEventId

Definition at line 492 of file widget.cpp.

References mActionEventId.

◆ setBackgroundColor()

void fcn::Widget::setBackgroundColor ( Color const & color )

virtual

Sets the background color.

Parameters

color The background Color.

See also: setBackgroundColor

Reimplemented in fcn::DropDown.

Definition at line 611 of file widget.cpp.

References mBackgroundColor.

Referenced by fcn::DropDown::setBackgroundColor().

◆ setBaseColor()

void fcn::Widget::setBaseColor ( Color const & color )

virtual

Sets the base color of the widget.

Parameters

color The base color.

See also: getBaseColor

Reimplemented in fcn::DropDown, and fcn::TabbedArea.

Definition at line 591 of file widget.cpp.

References mBaseColor.

Referenced by fcn::TabbedArea::addTab(), fcn::DropDown::setBaseColor(), and fcn::TabbedArea::setBaseColor().

◆ setBorderColor()

void fcn::Widget::setBorderColor ( Color const & color )

virtual

Sets the border color.

Parameters

color The border color.

See also: getBorderColor

Definition at line 641 of file widget.cpp.

References mBorderColor.

◆ setBorderSize()

void fcn::Widget::setBorderSize ( unsigned int size )

Sets the size of the widget's border.

The border is considered as part of the widget.

A border size of 0 means that the widget has no border. The default border size is 0.

Parameters

size	The size of the widget's border.

See also: getBorderSize, drawBorder

Definition at line 376 of file widget.cpp.

References mBorderSize.

Referenced by draw(), fcn::Slider::Slider(), and fcn::Window::Window().

◆ setDimension()

void fcn::Widget::setDimension ( Rectangle const & dimension )

Sets the dimension of the widget.

The dimension is relative to the widget's parent.

Parameters

dimension The dimension of the widget.

See also: getDimension, setX, getX, setY, getY, setPosition

Definition at line 223 of file widget.cpp.

References calculateSize(), distributeMovedEvent(), distributeResizedEvent(), fcn::Rectangle::height, mChildren, mDimension, fcn::Rectangle::width, fcn::Rectangle::x, and fcn::Rectangle::y.

Referenced by fcn::ScrollArea::setDimension(), fcn::TabbedArea::setDimension(), setHeight(), setPosition(), setSize(), setWidth(), setX(), and setY().

◆ setEnabled()

void fcn::Widget::setEnabled ( bool enabled )

Sets the widget to enabled, or not.

A disabled widget will never receive mouse or key events.

Parameters

enabled True if widget should be enabled, false otherwise.

See also: isEnabled

Definition at line 864 of file widget.cpp.

References mEnabled.

◆ setFixedSize()

void fcn::Widget::setFixedSize ( Size const & size )

Sets the dimension of the widget to a fixed size.

To disable it, provide a size with negative values.

Parameters

size	The fixed size of the widget.

See also: getFixedSize, isFixedSize

Definition at line 293 of file widget.cpp.

References calculateSize(), mFixedSize, and mFixedSizeUsed.

◆ setFocusable()

void fcn::Widget::setFocusable ( bool focusable )

Sets the widget to be focusable, or not.

Parameters

focusable True if the widget should be focusable, false otherwise.

See also: isFocusable

Definition at line 506 of file widget.cpp.

References isFocused(), mFocusable, and mFocusHandler.

Referenced by fcn::Button::Button(), fcn::DropDown::DropDown(), fcn::ListBox::ListBox(), fcn::Slider::Slider(), fcn::TextBox::TextBox(), and fcn::TextField::TextField().

◆ setFont()

void fcn::Widget::setFont ( Font * font )

virtual

Sets the font for the widget.

If Nullptr is passed, the global font will be used.

Parameters

font	The font to set for the widget.

See also: getFont

Reimplemented in fcn::DropDown.

Definition at line 821 of file widget.cpp.

References fontChanged(), and mCurrentFont.

Referenced by fcn::DropDown::setFont().

◆ setForegroundColor()

void fcn::Widget::setForegroundColor ( Color const & color )

virtual

Sets the foreground color.

Parameters

color The foreground color.

See also: getForegroundColor

Reimplemented in fcn::DropDown.

Definition at line 601 of file widget.cpp.

References mForegroundColor.

Referenced by fcn::DropDown::setForegroundColor().

◆ setGlobalFont()

void fcn::Widget::setGlobalFont ( Font * font )

static

Sets the global font to be used by default for all widgets.

Parameters

font	The global font.

See also: getGlobalFont

Definition at line 809 of file widget.cpp.

References mGlobalFont, and mWidgetInstances.

Referenced by fcn::Gui::setGlobalFont().

◆ setHeight()

void fcn::Widget::setHeight ( int height )

Sets the height of the widget.

Parameters

height The height of the widget.

See also: getHeight, setWidth, getWidth, setSize, setDimension, getDimension

Definition at line 175 of file widget.cpp.

References fcn::Rectangle::height, mDimension, and setDimension().

Referenced by fcn::DropDown::adjustHeight(), fcn::TextField::adjustHeight(), fcn::AdjustingContainer::adjustSize(), fcn::ListBox::adjustSizeImpl(), fcn::ScrollArea::setDimension(), fcn::ScrollArea::setHeight(), and fcn::TabbedArea::setHeight().

◆ setHorizontalExpand()

void fcn::Widget::setHorizontalExpand ( bool expand )

Sets the widget to horizontal expandable.

Parameters

expand True if the widget can be horizontal expanded, otherwise false.

See also: isHorizontalExpand

Definition at line 342 of file widget.cpp.

References mHExpand.

Referenced by fcn::Spacer::Spacer().

◆ setId()

void fcn::Widget::setId ( std::string const & id )

Sets an id of a widget.

An id can be useful if a widget needs to be identified in a container. For example, if widgets are created by an XML document, a certain widget can be retrieved given that the widget has an id.

Parameters

id	The id to set to the widget.

See also: getId, Container::findWidgetById

Definition at line 1016 of file widget.cpp.

References mId.

◆ setInternalFocusHandler()

void fcn::Widget::setInternalFocusHandler ( FocusHandler * internalFocusHandler )

Sets the internal focus handler.

An internal focus handler is needed if both a widget in the widget and the widget itself should be focused at the same time.

Parameters

internalFocusHandler The internal focus handler to be used.

See also: getInternalFocusHandler

Definition at line 1002 of file widget.cpp.

References _getFocusHandler(), mChildren, and mInternalFocusHandler.

Referenced by fcn::DropDown::DropDown().

◆ setLastPosition()

void fcn::Widget::setLastPosition	(	int	x,
		int	y )

Stores the last known position for this widget.

Parameters

x	The x coordinate to store.
y	The y coordinate to store.

Definition at line 1426 of file widget.cpp.

References mLastX, and mLastY.

Referenced by add(), remove(), and removeAllChildren().

◆ setMargin()

void fcn::Widget::setMargin ( int margin )

Sets all 4 margins to one value.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Parameters

margin The margin of the widget.

See also: setMarginTop, setMarginRight, setMarginBottom, setMarginRight

Definition at line 386 of file widget.cpp.

References mMarginBottom, mMarginLeft, mMarginRight, and mMarginTop.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setMarginBottom()

void fcn::Widget::setMarginBottom ( int margin )

Sets the bottom margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Parameters

margin The bottom margin of the widget.

See also: getMarginBottom

Definition at line 414 of file widget.cpp.

References mMarginBottom.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setMarginLeft()

void fcn::Widget::setMarginLeft ( int margin )

Sets the left margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Parameters

margin The left margin of the widget.

See also: getMarginLeft

Definition at line 424 of file widget.cpp.

References mMarginLeft.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setMarginRight()

void fcn::Widget::setMarginRight ( int margin )

Sets the right margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Parameters

margin The right margin of the widget.

See also: getMarginRight

Definition at line 404 of file widget.cpp.

References mMarginRight.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setMarginTop()

void fcn::Widget::setMarginTop ( int margin )

Sets the top margin.

The margin clears an area around an element (outside the border). The margin does not have a background color, and is completely transparent. It is also possible to use negative values, to overlap content.

Parameters

margin The top margin of the widget.

See also: getMarginTop

Definition at line 394 of file widget.cpp.

References mMarginTop.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setMaxSize()

void fcn::Widget::setMaxSize ( Size const & size )

Sets the maximal dimension of the widget.

Parameters

size	The maximal size of the widget.

See also: getMaxSize

Definition at line 282 of file widget.cpp.

References calculateSize(), and mMaxSize.

◆ setMinSize()

void fcn::Widget::setMinSize ( Size const & size )

Sets the minimal dimension of the widget.

Parameters

size	The minimal size of the widget.

See also: getMinSize

Definition at line 271 of file widget.cpp.

References calculateSize(), and mMinSize.

◆ setOutlineColor()

void fcn::Widget::setOutlineColor ( Color const & color )

virtual

Sets the outline color.

Parameters

color The outline color.

See also: getOutlineColor

Definition at line 631 of file widget.cpp.

References mOutlineColor.

◆ setOutlineSize()

void fcn::Widget::setOutlineSize ( unsigned int size )

Sets the size of the widget's outline.

The outline is not considered as part of the widget, it only allows a outline to be drawn around the widget, thus a outline will never be included when calculating if a widget should receive events from user input. Also a widget's outline will never be included when calculating a widget's position.

A outline size of 0 means that the widget has no outline. The default outline size is 0.

Parameters

size	The size of the widget's outline.

See also: getOutlineSize, drawOutline

Definition at line 366 of file widget.cpp.

References mOutlineSize.

Referenced by draw().

◆ setPadding()

void fcn::Widget::setPadding ( unsigned int padding )

Sets all 4 paddings to one value.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Parameters

padding The top padding of the widget.

See also: setPaddingTop, setPaddingRight, setPaddingBottom, setPaddingLeft

Definition at line 434 of file widget.cpp.

References mPaddingBottom, mPaddingLeft, mPaddingRight, and mPaddingTop.

Referenced by fcn::FlowContainer::resizeToContent(), and fcn::Window::Window().

◆ setPaddingBottom()

void fcn::Widget::setPaddingBottom ( unsigned int padding )

Sets the bottom padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Parameters

padding The bottom padding of the widget.

See also: getPaddingBottom

Definition at line 462 of file widget.cpp.

References mPaddingBottom.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setPaddingLeft()

void fcn::Widget::setPaddingLeft ( unsigned int padding )

Sets the left padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Parameters

padding The left padding of the widget.

See also: getPaddingLeft

Definition at line 472 of file widget.cpp.

References mPaddingLeft.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setPaddingRight()

void fcn::Widget::setPaddingRight ( unsigned int padding )

Sets the right padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Parameters

padding The right padding of the widget.

See also: getPaddingRight

Definition at line 452 of file widget.cpp.

References mPaddingRight.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setPaddingTop()

void fcn::Widget::setPaddingTop ( unsigned int padding )

Sets the top padding.

The padding clears an area around the content (inside the border) of an element. The padding is affected by the background color of the element.

Parameters

padding The top padding of the widget.

See also: getPaddingTop

Definition at line 442 of file widget.cpp.

References mPaddingTop.

Referenced by fcn::FlowContainer::resizeToContent().

◆ setPosition()

void fcn::Widget::setPosition	(	int	x,
		int	y )

Sets position of the widget.

The position is relative to the widget's parent.

Parameters

x	The x coordinate of the widget.
y	The y coordinate of the widget.

See also: setX, getX, setY, getY, setDimension, getDimension

Definition at line 214 of file widget.cpp.

References mDimension, setDimension(), fcn::Rectangle::x, and fcn::Rectangle::y.

Referenced by fcn::Container::add(), fcn::TabbedArea::adjustTabPositions(), fcn::ScrollArea::logic(), fcn::Window::mouseDragged(), and fcn::ScrollArea::setContent().

◆ setSelectionColor()

void fcn::Widget::setSelectionColor ( Color const & color )

virtual

Sets the selection color.

Parameters

color The selection color.

See also: getSelectionColor

Reimplemented in fcn::DropDown.

Definition at line 621 of file widget.cpp.

References mSelectionColor.

Referenced by fcn::DropDown::setSelectionColor().

◆ setSelectionMode()

void fcn::Widget::setSelectionMode ( SelectionMode mode )

virtual

Sets the selection mode.

Parameters

mode	The selection mode that is used when the widget is "active".

See also: getSelectionMode

Definition at line 651 of file widget.cpp.

References mSelectionMode.

◆ setSize()

void fcn::Widget::setSize	(	int	width,
		int	height )

Sets the size of the widget.

Parameters

width	The width of the widget.
height	The height of the widget.

See also: setWidth, setHeight, getWidth, getHeight, setDimension, getDimension

Definition at line 855 of file widget.cpp.

References fcn::Rectangle::height, mDimension, setDimension(), and fcn::Rectangle::width.

Referenced by fcn::FlowContainer::adjustContent(), fcn::Container::adjustSize(), fcn::Window::adjustSize(), fcn::Button::adjustSizeImpl(), fcn::CheckBox::adjustSizeImpl(), fcn::Icon::adjustSizeImpl(), fcn::IconProgressBar::adjustSizeImpl(), fcn::ImageButton::adjustSizeImpl(), fcn::ImageProgressBar::adjustSizeImpl(), fcn::Label::adjustSizeImpl(), fcn::TextBox::adjustSizeImpl(), resizeToChildren(), fcn::Container::resizeToContent(), fcn::FlowContainer::resizeToContent(), fcn::Spacer::resizeToContent(), and fcn::TabbedArea::setSize().

◆ setTabInEnabled()

void fcn::Widget::setTabInEnabled ( bool enabled )

Sets tab in enabled, or not.

Tab in means that you can set focus to this widget by pressing the tab button. If tab in is disabled then the FocusHandler will skip this widget and focus the next in its focus order.

Parameters

enabled True if tab in should be enabled, false otherwise.

See also: isTabInEnabled

Definition at line 840 of file widget.cpp.

References mTabIn.

◆ setTabOutEnabled()

void fcn::Widget::setTabOutEnabled ( bool enabled )

Sets tab out enabled.

Tab out means that you can lose focus to this widget by pressing the tab button. If tab out is disabled then the FocusHandler ignores tabbing and focus will stay with this widget.

Parameters

enabled True if tab out should be enabled, false otherwise.

See also: isTabOutEnabled

Definition at line 850 of file widget.cpp.

References mTabOut.

◆ setVerticalExpand()

void fcn::Widget::setVerticalExpand ( bool expand )

Sets the widget to vertical expandable.

Parameters

expand True if the widget can be vertical expanded, otherwise false.

See also: isVerticalExpand

Definition at line 332 of file widget.cpp.

References mVExpand.

Referenced by fcn::Spacer::Spacer().

◆ setVisible()

void fcn::Widget::setVisible ( bool visible )

Sets the widget to be visible, or not.

Parameters

visible True if widget should be visible, false otherwise.

See also: isVisible

Definition at line 545 of file widget.cpp.

References _getVisibilityEventHandler(), distributeHiddenEvent(), distributeShownEvent(), isFocused(), mChildren, mFocusHandler, mVisible, fcn::VisibilityEventHandler::widgetHidden(), and fcn::VisibilityEventHandler::widgetShown().

◆ setWidth()

void fcn::Widget::setWidth ( int width )

Sets the width of the widget.

Parameters

width The width of the widget.

See also: getWidth, setHeight, getHeight, setSize, setDimension, getDimension

Definition at line 162 of file widget.cpp.

References mDimension, setDimension(), and fcn::Rectangle::width.

Referenced by fcn::AdjustingContainer::adjustSize(), fcn::ListBox::adjustSizeImpl(), fcn::TextField::adjustSizeImpl(), fcn::DropDown::DropDown(), fcn::ListBox::ListBox(), fcn::ScrollArea::setDimension(), fcn::ScrollArea::setWidth(), and fcn::TabbedArea::setWidth().

◆ setX()

void fcn::Widget::setX ( int x )

Sets the x coordinate of the widget.

The coordinate is relative to the widget's parent.

Parameters

x	The x coordinate of the widget.

See also: getX, setY, getY, setPosition, setDimension, getDimension

Definition at line 188 of file widget.cpp.

References mDimension, setDimension(), and fcn::Rectangle::x.

Referenced by showWidgetPart().

◆ setY()

void fcn::Widget::setY ( int y )

Sets the y coordinate of the widget.

The coordinate is relative to the widget's parent.

Parameters

y	The y coordinate of the widget.

See also: setY, setX, getX, setPosition, setDimension, getDimension

Definition at line 201 of file widget.cpp.

References mDimension, setDimension(), and fcn::Rectangle::y.

Referenced by showWidgetPart().

◆ showPart()

void fcn::Widget::showPart ( Rectangle rectangle )

virtual

Shows a certain part of a widget in the widget's parent.

Used when widgets want a specific part to be visible in its parent. An example is a TextArea that wants a specific part of its text to be visible when a TextArea is a child of a ScrollArea.

Parameters

rectangle The rectangle to be shown.

Definition at line 1131 of file widget.cpp.

References mParent.

Referenced by fcn::TextBox::scrollToCaret(), and fcn::ListBox::setSelected().

◆ showWidgetPart()

void fcn::Widget::showWidgetPart	(	Widget *	widget,
		Rectangle	area )

virtual

Tries to show a specific part of a widget by moving it.

Used if the widget should act as a container.

Parameters

widget	The target widget.
area	The area to show.

Reimplemented in fcn::ScrollArea.

Definition at line 1204 of file widget.cpp.

References getChildrenArea(), getX(), getY(), fcn::Rectangle::height, setX(), setY(), Widget(), fcn::Rectangle::width, fcn::Rectangle::x, and fcn::Rectangle::y.

Referenced by fcn::ScrollArea::showWidgetPart().

◆ widgetExists()

bool fcn::Widget::widgetExists ( Widget const * widget )

static

Checks if a widget exists or not, that is if it still exists an instance of the object.

Parameters

widget The widget to check.

Returns: True if an instance of the widget exists, false otherwise.

Definition at line 827 of file widget.cpp.

References mWidgetInstances, and Widget().

Referenced by _setFocusHandler(), fcn::Gui::distributeKeyEvent(), fcn::Gui::distributeMouseEvent(), and fcn::Gui::handleHiddenWidgets().

Member Data Documentation

◆ mActionEventId

std::string fcn::Widget::mActionEventId

protected

Holds the action event of the widget.

Definition at line 1740 of file widget.hpp.

Referenced by distributeActionEvent(), getActionEventId(), and setActionEventId().

◆ mActionListeners

std::list<ActionListener*> fcn::Widget::mActionListeners

protected

Holds the action listeners of the widget.

Definition at line 1608 of file widget.hpp.

Referenced by addActionListener(), distributeActionEvent(), and removeActionListener().

◆ mBackgroundColor

Color fcn::Widget::mBackgroundColor {0xf9fafb}

protected

Holds the background color of the widget.

Definition at line 1633 of file widget.hpp.

Referenced by getBackgroundColor(), and setBackgroundColor().

◆ mBaseColor

Color fcn::Widget::mBaseColor {0xe5e7eb}

protected

Holds the base color of the widget.

Definition at line 1638 of file widget.hpp.

Referenced by getBaseColor(), and setBaseColor().

◆ mBorderColor

Color fcn::Widget::mBorderColor {0xd1d5db}

protected

Holds the border color of the widget.

Definition at line 1653 of file widget.hpp.

Referenced by getBorderColor(), and setBorderColor().

◆ mBorderSize

unsigned int fcn::Widget::mBorderSize {0}

protected

Holds the border size of the widget.

Definition at line 1690 of file widget.hpp.

Referenced by getBorderSize(), and setBorderSize().

◆ mChildren

std::list<Widget*> fcn::Widget::mChildren

protected

◆ mCurrentFont

Font* fcn::Widget::mCurrentFont {nullptr}

protected

Holds the font used by the widget.

Definition at line 1808 of file widget.hpp.

Referenced by getFont(), and setFont().

◆ mDeathListeners

std::list<DeathListener*> fcn::Widget::mDeathListeners

protected

Holds the death listeners of the widget.

Definition at line 1613 of file widget.hpp.

Referenced by addDeathListener(), and removeDeathListener().

◆ mDefaultFont

DefaultFont fcn::Widget::mDefaultFont

staticprotected

Holds the default font used by the widget.

Definition at line 1813 of file widget.hpp.

Referenced by getFont().

◆ mDimension

Rectangle fcn::Widget::mDimension

protected

Holds the dimension of the widget.

Definition at line 1675 of file widget.hpp.

Referenced by _draw(), calculateSize(), getAbsolutePosition(), getDimension(), getHeight(), getWidth(), getX(), getY(), fcn::TabbedArea::setDimension(), setDimension(), fcn::TabbedArea::setHeight(), setHeight(), setPosition(), fcn::TabbedArea::setSize(), setSize(), fcn::TabbedArea::setWidth(), setWidth(), setX(), and setY().

◆ mEnabled

bool fcn::Widget::mEnabled {true}

protected

True if the widget is enabled, false otherwise.

Definition at line 1765 of file widget.hpp.

Referenced by isEnabled(), and setEnabled().

◆ mFixedSize

Size fcn::Widget::mFixedSize {-1, -1}

protected

Holds the fixed size.

Definition at line 1788 of file widget.hpp.

Referenced by calculateSize(), getFixedSize(), and setFixedSize().

◆ mFixedSizeUsed

bool fcn::Widget::mFixedSizeUsed {false}

protected

True if the widget used a fixed size.

Definition at line 1793 of file widget.hpp.

Referenced by calculateSize(), isFixedSize(), and setFixedSize().

◆ mFocusable

bool fcn::Widget::mFocusable {false}

protected

True if the widget focusable, false otherwise.

Definition at line 1745 of file widget.hpp.

Referenced by isFocusable(), and setFocusable().

◆ mFocusHandler

FocusHandler* fcn::Widget::mFocusHandler {nullptr}

protected

Holds the focus handler used by the widget.

Definition at line 1658 of file widget.hpp.

Referenced by _getFocusHandler(), _setFocusHandler(), isFocused(), isModalFocusable(), isModalFocused(), isModalMouseInputFocusable(), isModalMouseInputFocused(), releaseModalFocus(), releaseModalMouseInputFocus(), requestFocus(), requestModalFocus(), requestModalMouseInputFocus(), setFocusable(), and setVisible().

◆ mFocusListeners

std::list<FocusListener*> fcn::Widget::mFocusListeners

protected

Holds the focus listeners of the widget.

Definition at line 1618 of file widget.hpp.

Referenced by _getFocusListeners(), addFocusListener(), and removeFocusListener().

◆ mForegroundColor

Color fcn::Widget::mForegroundColor {0x1f2933}

protected

Holds the foreground color of the widget.

Definition at line 1628 of file widget.hpp.

Referenced by getForegroundColor(), and setForegroundColor().

◆ mGlobalFont

Font * fcn::Widget::mGlobalFont = nullptr

staticprotected

Holds the global font used by the widget.

Definition at line 1818 of file widget.hpp.

Referenced by getFont(), and setGlobalFont().

◆ mGuiDeathListener

DeathListener * fcn::Widget::mGuiDeathListener = nullptr

staticprotected

Holds the death listener used by the widgets.

Definition at line 1837 of file widget.hpp.

Referenced by _getGuiDeathListener(), and _setGuiDeathListener().

◆ mHExpand

bool fcn::Widget::mHExpand {false}

protected

True if the widget can be horizontal expanded.

Definition at line 1803 of file widget.hpp.

Referenced by isHorizontalExpand(), and setHorizontalExpand().

◆ mId

std::string fcn::Widget::mId

protected

Holds the id of the widget.

Definition at line 1770 of file widget.hpp.

Referenced by getId(), and setId().

◆ mInternalFocusHandler

FocusHandler* fcn::Widget::mInternalFocusHandler {nullptr}

protected

Holds the focus handler used by the widget.

Nullptr if no internal focus handler is used.

Definition at line 1664 of file widget.hpp.

Referenced by _getInternalFocusHandler(), _setFocusHandler(), add(), and setInternalFocusHandler().

◆ mKeyListeners

std::list<KeyListener*> fcn::Widget::mKeyListeners

protected

Holds the key listeners of the widget.

Definition at line 1603 of file widget.hpp.

Referenced by _getKeyListeners(), addKeyListener(), and removeKeyListener().

◆ mLastX

int fcn::Widget::mLastX {0}

protected

Last stored X coordinate used for layout and event calculations.

Definition at line 1845 of file widget.hpp.

Referenced by getAbsolutePosition(), getLastPosition(), isLastPositionSet(), and setLastPosition().

◆ mLastY

int fcn::Widget::mLastY {0}

protected

Last stored Y coordinate used for layout and event calculations.

Definition at line 1848 of file widget.hpp.

Referenced by getAbsolutePosition(), getLastPosition(), isLastPositionSet(), and setLastPosition().

◆ mMarginBottom

int fcn::Widget::mMarginBottom {0}

protected

Holds the bottom margin of the widget.

Definition at line 1710 of file widget.hpp.

Referenced by getMarginBottom(), setMargin(), and setMarginBottom().

◆ mMarginLeft

int fcn::Widget::mMarginLeft {0}

protected

Holds the left margin of the widget.

Definition at line 1715 of file widget.hpp.

Referenced by getMarginLeft(), setMargin(), and setMarginLeft().

◆ mMarginRight

int fcn::Widget::mMarginRight {0}

protected

Holds the top right of the widget.

Definition at line 1705 of file widget.hpp.

Referenced by getMarginRight(), setMargin(), and setMarginRight().

◆ mMarginTop

int fcn::Widget::mMarginTop {0}

protected

Holds the top margin of the widget.

Definition at line 1700 of file widget.hpp.

Referenced by getMarginTop(), setMargin(), and setMarginTop().

◆ mMaxSize

Size fcn::Widget::mMaxSize {std::numeric_limits<int>::max(), std::numeric_limits<int>::max()}

protected

Holds the max size.

Default to a very large value so widgets are not clamped to zero when the user does not explicitly set a max size.

Definition at line 1783 of file widget.hpp.

Referenced by calculateSize(), getMaxSize(), and setMaxSize().

◆ mMinSize

Size fcn::Widget::mMinSize {0, 0}

protected

Holds the min size.

Definition at line 1775 of file widget.hpp.

Referenced by calculateSize(), getMinSize(), and setMinSize().

◆ mMouseListeners

std::list<MouseListener*> fcn::Widget::mMouseListeners

protected

Holds the mouse listeners of the widget.

Definition at line 1598 of file widget.hpp.

Referenced by _getMouseListeners(), addMouseListener(), and removeMouseListener().

◆ mOffsetRect

Rectangle fcn::Widget::mOffsetRect

protected

Holds the offset dimension of the widget.

Definition at line 1680 of file widget.hpp.

◆ mOutlineColor

Color fcn::Widget::mOutlineColor {0x9ca3af}

protected

Holds the outline color of the widget.

Definition at line 1648 of file widget.hpp.

Referenced by getOutlineColor(), and setOutlineColor().

◆ mOutlineSize

unsigned int fcn::Widget::mOutlineSize {0}

protected

Holds the outline size of the widget.

Definition at line 1685 of file widget.hpp.

Referenced by _draw(), getOutlineSize(), and setOutlineSize().

◆ mPaddingBottom

unsigned int fcn::Widget::mPaddingBottom {0}

protected

Holds the bottom padding of the widget.

Definition at line 1730 of file widget.hpp.

Referenced by fcn::AdjustingContainer::adjustSize(), getPaddingBottom(), setPadding(), and setPaddingBottom().

◆ mPaddingLeft

unsigned int fcn::Widget::mPaddingLeft {0}

protected

Holds the left padding of the widget.

Definition at line 1735 of file widget.hpp.

Referenced by fcn::AdjustingContainer::adjustContent(), fcn::AdjustingContainer::adjustSize(), getPaddingLeft(), setPadding(), and setPaddingLeft().

◆ mPaddingRight

unsigned int fcn::Widget::mPaddingRight {0}

protected

Holds the right padding of the widget.

Definition at line 1725 of file widget.hpp.

Referenced by fcn::AdjustingContainer::adjustSize(), getPaddingRight(), setPadding(), and setPaddingRight().

◆ mPaddingTop

unsigned int fcn::Widget::mPaddingTop {0}

protected

Holds the top padding of the widget.

Definition at line 1720 of file widget.hpp.

Referenced by fcn::AdjustingContainer::adjustContent(), fcn::AdjustingContainer::adjustSize(), getPaddingTop(), setPadding(), and setPaddingTop().

◆ mParent

Widget* fcn::Widget::mParent {nullptr}

protected

Holds the parent of the widget.

Nullptr if the widget has no parent.

Definition at line 1670 of file widget.hpp.

Referenced by _setParent(), getParent(), requestMoveToBottom(), requestMoveToTop(), and showPart().

◆ mSelectionColor

Color fcn::Widget::mSelectionColor {0x3b82f6}

protected

Holds the selection color of the widget.

Definition at line 1643 of file widget.hpp.

Referenced by getSelectionColor(), and setSelectionColor().

◆ mSelectionMode

SelectionMode fcn::Widget::mSelectionMode {SelectionMode::None}

protected

Holds the selection mode.

Definition at line 1695 of file widget.hpp.

Referenced by getSelectionMode(), and setSelectionMode().

◆ mTabIn

bool fcn::Widget::mTabIn {true}

protected

True if the widget has tab in enabled, false otherwise.

Definition at line 1755 of file widget.hpp.

Referenced by isTabInEnabled(), and setTabInEnabled().

◆ mTabOut

bool fcn::Widget::mTabOut {true}

protected

True if the widget has tab in enabled, false otherwise.

Definition at line 1760 of file widget.hpp.

Referenced by isTabOutEnabled(), and setTabOutEnabled().

◆ mVExpand

bool fcn::Widget::mVExpand {false}

protected

True if the widget can be vertical expanded.

Definition at line 1798 of file widget.hpp.

Referenced by isVerticalExpand(), and setVerticalExpand().

◆ mVisibilityEventHandler

VisibilityEventHandler * fcn::Widget::mVisibilityEventHandler = nullptr

staticprotected

Holds the visibility event handler used by the widgets.

TODO: FIXME We don't like the visibility handler being static but we leave it as is for the moment, until we come up a better solution.

Definition at line 1832 of file widget.hpp.

Referenced by _getVisibilityEventHandler(), and _setVisibilityEventHandler().

◆ mVisible

bool fcn::Widget::mVisible {true}

protected

True if the widget visible, false otherwise.

Definition at line 1750 of file widget.hpp.

Referenced by isSetVisible(), isVisible(), and setVisible().

◆ mWidgetInstances

std::list< Widget * > fcn::Widget::mWidgetInstances

staticprotected

Holds a list of all instances of widgets.

Definition at line 1823 of file widget.hpp.

Referenced by setGlobalFont(), Widget(), and widgetExists().

◆ mWidgetListeners

std::list<WidgetListener*> fcn::Widget::mWidgetListeners

protected

Holds the widget listeners of the widget.

Definition at line 1623 of file widget.hpp.

Referenced by addWidgetListener(), distributeAncestorHiddenEvent(), distributeAncestorMovedEvent(), distributeAncestorShownEvent(), distributeHiddenEvent(), distributeMovedEvent(), distributeResizedEvent(), distributeShownEvent(), and removeWidgetListener().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ SelectionMode

Constructor & Destructor Documentation

◆ Widget()

◆ ~Widget()

Member Function Documentation

◆ _draw()

◆ _getFocusHandler()

◆ _getFocusListeners()

◆ _getGuiDeathListener()

◆ _getInternalFocusHandler()

◆ _getKeyListeners()

◆ _getMouseListeners()

◆ _getVisibilityEventHandler()

◆ _logic()

◆ _setFocusHandler()

◆ _setGuiDeathListener()

◆ _setParent()

◆ _setVisibilityEventHandler()

◆ adaptLayout() [1/2]

◆ adaptLayout() [2/2]

◆ add()

◆ addActionListener()

◆ addDeathListener()

◆ addFocusListener()

◆ addKeyListener()

◆ addMouseListener()

◆ addWidgetListener()

◆ adjustSize()

◆ calculateSize()

◆ distributeActionEvent()

◆ distributeAncestorHiddenEvent()

◆ distributeAncestorMovedEvent()

◆ distributeAncestorShownEvent()

◆ distributeHiddenEvent()

◆ distributeMovedEvent()

◆ distributeResizedEvent()

◆ distributeShownEvent()

◆ draw()

◆ drawBorder()

◆ drawOutline()

◆ drawSelectionFrame()

◆ expandContent() [1/2]

◆ expandContent() [2/2]

◆ findWidgetById()

◆ focusNext()

◆ focusPrevious()

◆ fontChanged()

◆ getAbsolutePosition()

◆ getActionEventId()

◆ getBackgroundColor()

◆ getBaseColor()

◆ getBorderColor()

◆ getBorderSize()

◆ getChildren()

◆ getChildrenArea()

◆ getChildrenCount()

◆ getDimension()

◆ getFixedSize()

◆ getFont()

◆ getForegroundColor()

◆ getHeight()

◆ getId()

◆ getLastPosition()

◆ getMarginBottom()

◆ getMarginLeft()

◆ getMarginRight()

◆ getMarginTop()

◆ getMaxSize()

◆ getMinSize()

◆ getOutlineColor()

◆ getOutlineSize()

◆ getPaddingBottom()
